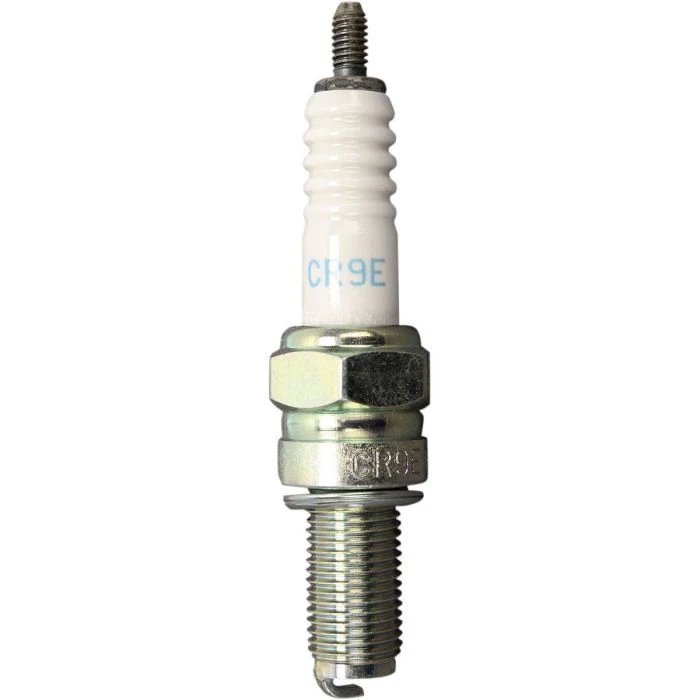

NGK Standard Spark Plug – CR9E

NGK Standard Spark Plug – CR9E

NGK Standard Plugs Are Constructed For Longer Life And Optimum Performance.

Features

• Trivalent Metal Plating Provides Superior Anti-Corrosion And Anti-Seizing Properties
• Corrugated Ribs Prevent Flashover
• Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength And Better Heat Transfer
• Copper Core Aids In Heat Removal
• Triple Seals Prevent Leakage

Shell

• Thread Diameter: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Reach: 19mm (3/4″)
• Hex Size: 5/8″ (16mm)
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap: .031″ (0.8mm)

Center Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Resistor: Yes
• Resistor Value: 5k Ohm
• Heat Range: 9
• Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
• Longevity: 48k km
