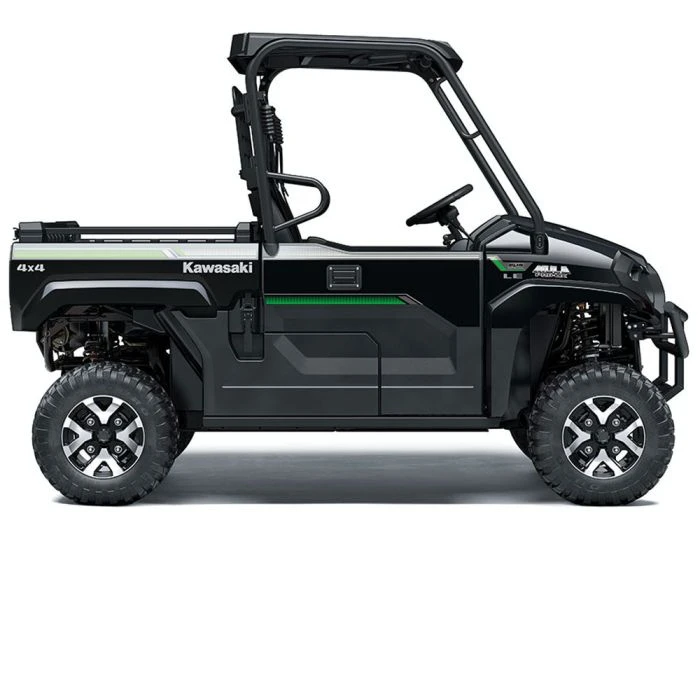

2023 Kawasaki MULE PRO MX EPS LE KAF700CPFNN
| Engine | 695cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder single |
| Bore x Stroke | 102.0 x 85.0 mm |
| Compression Ratio | 10.3:1 |
| Fuel System | Fuel injection: ø44 mm x 1 |
| Ignition | Battery & coil |
| Starting | Electric |
| Lubrication | Forced lubrication, wet sump |
| Transmission | Dual-range (high/low) CVT with centrifugal clutch and reverse |
| Final Drive | 2WD/4WD, shaft, dual-mode differential |
CAPABILITY
| Frame | Ladder type, tubular steel |
| Front Suspension / Wheel Travel | Double wishbone / 218 mm (8.6 in) |
| Rear Suspension / Wheel Travel | Double wishbone / 232 mm (9.1 in) |
| Steering | Rack and pinion with Electric Power Steering |
| Rake / Trail | 5.0° / – |
| Steering Angle (L/R) | 40° (IN) / 30° (OUT), 40° (IN) / 30° (OUT) |
| Front Tires | 25 x 8.00R12 |
| Rear Tires | 25 x 10.00R12 |
| Front Brakes | Dual ø212 mm discs with two-piston calipers |
| Rear Brakes | Dual ø212 mm discs with single-piston calipers |
| Parking Brake | Dual discs (mechanical) |
DETAILS
| Dimensions (LxWxH) | 2,795 x 1,525 x 1,925 mm (110.0 x 60.0 x 75.8 in) |
| Wheelbase | 2,005 mm (78.9 in) |
| Road Clearance | 270 mm (10.6 in) |
| Seat Height | 850 mm (33.5 in) |
| Curb Mass** | 723 kg (1,594 lb) |
| Fuel Capacity | 36 litres |
| Tread (F/R) | 1,322 mm (52.0 in) / 1,285 mm (50.6 in) |
| Turning Radius | 4.2 m (13.8 ft) |
| Cargo Bed Dimensions (LxWxH) | 847 x 1,119 x 232 mm (33.3 x 44.1 x 9.1 in) |
| Cargo Bed Capacity | 317 kg (700 lb) |
| Seating Capacity | 2 |
| Vehicle Load Capacity | 544 kg (1,200 lb) |
| Towing Capacity | 680 kg (1,500 lb) |
| Lighting | 2x halogen, 2x LED headlights |
| Instrumentation | Multi-function display includes driving mode (2WD/4WD) indicator, digital speedometer, digital fuel gauge, clock, odometer, dual trip meters, hour meter, differential indicator lamp, and various warning lamps |
