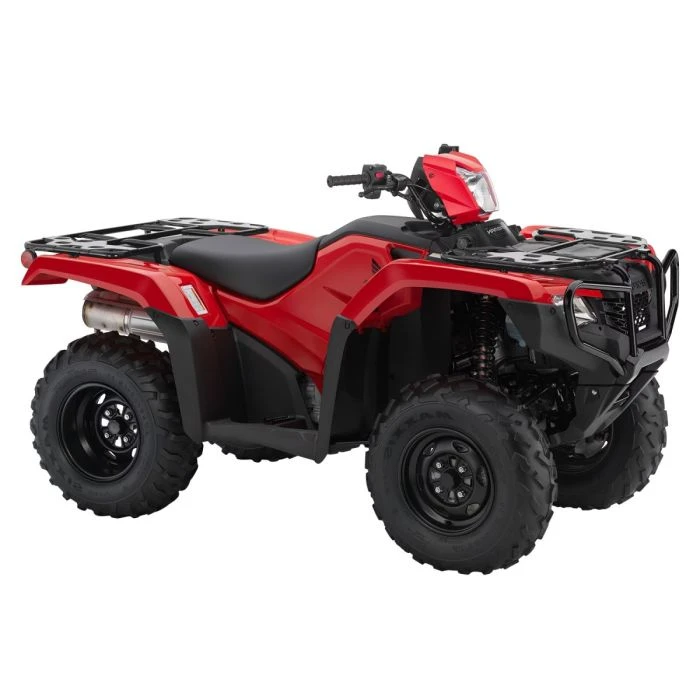

2023 Honda FOREMAN 520 TRX520FM1P

Honda 2023 FOREMAN 520 TRX520FM1P

Specifications

Engine & Drivetrain

Engine Type

Liquid-cooled longitudinally mounted single-cylinder

Displacement

518 cc

Bore & Stroke

96.0 mm x 71.5 mm

Compression Ratio

9.5:1

Valve Train

OHV, 2 valves

Fuel Delivery

PGM-FI electronic fuel injection

Transmission

Five-speed with automatic clutch, reverse and ultra-low first gear

Power Steering

Not Available

Final Drive

2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential

Chassis & Suspension

Front Suspension

Independent Double A-Arm with adjustable hydraulic shocks; 185 mm (7.3 in.) travel

Rear Suspension

Swingarm with single adjustable hydraulic shock; 185 mm (7.3 in.) travel

Additional Information

Tires

Front: 25 x 8 – 12

Rear: 25 x 10 – 12

Brakes

Front: dual 190 mm discs

Rear: 160 mm sealed mechanical drum

Length

2,106 mm (82.9 in.)

Width

1,205 mm (47.4 in.)

Ground Clearance

190 mm (7.5 in.)

Wheelbase

1,269 mm (50.0 in.)

Curb Weight

289 kg (637 lb.) including required fluids and full tank of gas – ready to ride

Fuel Capacity

14.7 litres, including 4.9-litre reserve

Cargo Capacity

Front rack: 40 kg (88 lb.)

Rear rack: 80 kg (176 lb.)

Towing Capacity

385 kg (850 lb.)

Colour

Patriot Red, Adventure Green, Close Range Camo 2

Warranty

12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
