Sale!

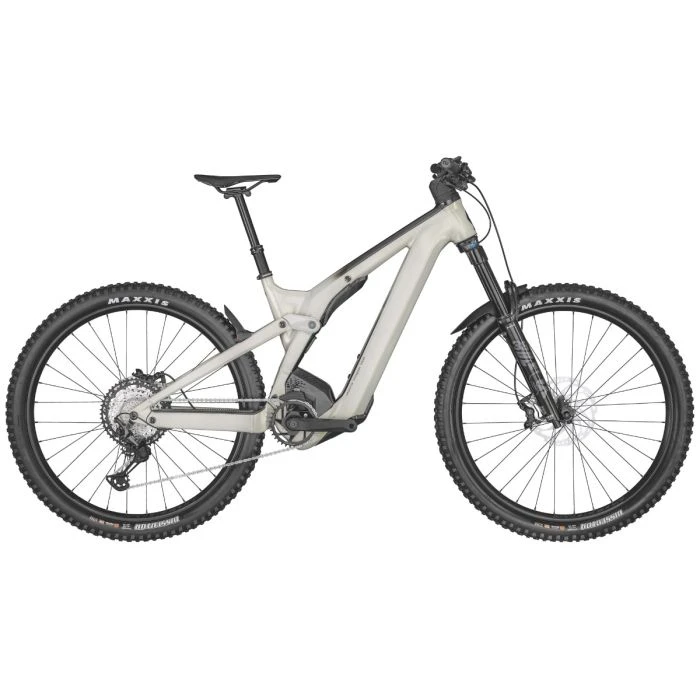

2022 Scott Patron ERide 910 US
Original price was: $333.00.$95.99Current price is: $95.99.
- Uncompromising quality, every time.
- Buy with Confidence, Get Quality
- Control the delivery date and try to deliver it in the fastest time
- Unbeatable Quality, Unbeatable Value
2022 Scott Patron ERide 910 US
The all-new Patron eRIDE 910 was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE – boss the trails.
Model :Â 286509
KEY FEATURES
- Patron eRIDE Alloy Frame
- FOX 38 Perf. 160mm Fork
- FOX Float EVOL eRIDE, 160mm, TwinLoc
- Shimano XT 12 Speed
- Bosch CX, 750Wh PowerTube
- Shimano SLX 4 Piston Disc Brakes
- Maxxis Foldable Tires
- Syncros Dropper Post and Parts
- Bosch Light Cable pre-installed F&R
Specifications:
FRAME
Alloy Frame & Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable
Â
TRAVEL
Front: 160mm / Rear: 160mm
Â
FORK
FOX 38 Perf. Air / eMTB+ / FIT4
3-Modes with low Speed adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
3-Modes with low Speed adj. / QR Axle 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
Â
REAR SHOCK
FOX Float EVOL eRIDE Trunnion
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
3 modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
Â
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes
Suspension & Dropper Remote
3 modes
Â
DRIVE UNIT
Bosch Performance CX
EU: 25kmh / INT: 20mph
EU: 25kmh / INT: 20mph
Â
BATTERY
PowerTube 750Wh
Â
DISPLAY
Bosch LED Remote & Kiox 300
Â
CHARGER
4A Charger
Â
REAR DERAILLEUR
Shimano XT / 12 Speed
Â
SHIFTERS
Shimano SL-M8100
Â
CRANKSET
FSA CK-745 165mm / 34T
Â
CHAINGUIDE
e*thirteen / e*spec Slider
Â
CHAINRING
FSA WB604 / 34T / DM / Steel
Â
CHAIN
Shimano CN-M8100
Â
CASSETTE
Shimano CS-M8100 / 10-51 T
BRAKES
Shimano SLX / BR-M7120 4 Piston
Â
ROTOR
Front&Rear: SM-RT70 CL 203mm
Â
HANDLEBAR
Syncros Hixon 1.5 / Alloy 7050D.B.
12mm rise / 9° / 780mm
Syncros Pro lock-on grips
12mm rise / 9° / 780mm
Syncros Pro lock-on grips
Â
H’STEM
Syncros AM1.5 / 7050 Alloy
31.8mm / 4° / 1 1/8″
31.8mm / 4° / 1 1/8″
Â
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M & L size 150mm / XL size 170mm
31.6mm / S size 125mm / M & L size 150mm / XL size 170mm
Â
SEAT
Syncros Tofino 1.5 Regular
Titanium rails
Titanium rails
Â
HEADSET
Acros / 1.8″
ZS66 OD74 / integr. Cable
ZS66 OD74 / integr. Cable
Â
HUB (FRONT)
Formula CL-811 / 15x110mm
Â
HUB (REAR)
Formula ECT-1481 / Boost 148x12mm
Â
SPOKES
Stainless Black
Â
RIMS
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready
Tubeless ready
Â
FRONT TIRE
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
Â
REAR TIRE
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra
Â
LIGHTS
Bosch Light Cable pre-installed F&R
Â
EXTRAS
Syncros Trail 2 fender 36/38
Syncros eRIDE integrated light fender
Syncros eRIDE integrated light fender
Â
APPROX WEIGHTS IN KG
26.10
Â
APPROX WEIGHTS IN LBS
57.54
Â
MAX. SYSTEM WEIGHT
128 kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Â
Geometry:
| Â | Â | Â | Â | Â | Â | Â | Â | S | Â | M | Â | L | Â | XL | Â |
| A | HEAD TUBE ANGLE |  |  |  |  |  |  | 64.5 ° |  | 65.0 ° |  | 65.0 ° |  | 65.0 ° |  |
| B | HEAD TUBE LENGTH | Â | Â | Â | Â | Â | Â | 120.0 MM | 125.0 MM | 135.0 MM | 145.0 MM | ||||
| C | TOP TUBE HORIZONTAL | Â | Â | Â | Â | Â | Â | 579.4 MM | 595.0 MM | 625.6 MM | 656.4 MM | ||||
| D | STANDOVER HEIGHT | Â | Â | Â | Â | Â | Â | 766.0 MM | 766.0 MM | 766.0 MM | 766.0 MM | ||||
| E | BB OFFSET | Â | Â | Â | Â | Â | Â | -30.0 MM | -30.0 MM | -30.0 MM | -30.0 MM | ||||
| F | BB HEIGHT | Â | Â | Â | Â | Â | Â | 347.0 MM | 347.0 MM | 347.0 MM | 347.0 MM | ||||
| G | WHEEL BASE | Â | Â | Â | Â | Â | Â | 1,221.7 MM | 1,231.7 MM | 1,263.7 MM | 1,295.4 MM | ||||
| H | BB CENTER TO TOPTUBE CENTER | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Â |
| I | BB CENTER TO TOP OF SEATTUBE | Â | Â | Â | Â | Â | Â | 410.5 MM | 440.5 MM | 470.4 MM | 500.4 MM | ||||
| J | SEAT ANGLE |  |  |  |  |  |  | 77.0 ° |  | 76.9 ° |  | 76.9 ° |  | 76.8 ° |  |
| K | CHAINSTAY | Â | Â | Â | Â | Â | Â | 454.0 MM | 454.0 MM | 454.0 MM | 454.0 MM | ||||
| L | REACH | Â | Â | Â | Â | Â | Â | 432.7 MM | 445.8 MM | 473.6 MM | 501.2 MM | ||||
| M | STACK | Â | Â | Â | Â | Â | Â | 634.8 MM | 642.2 MM | 651.3 MM | 660.4 MM | ||||
| N | STEM LENGTH | Â | Â | Â | Â | Â | Â | 50.0 MM | 50.0 MM | 60.0 MM | 60.0 MM | ||||
| 0 | TRAIL | Â | Â | Â | Â | Â | Â | 133.3 MM | 129.5 MM | 129.5 MM | 129.5 MM | ||||
| P | FORK LENGTH | Â | Â | Â | Â | Â | Â | 567.1 MM | 567.1 MM | 567.1 MM | 567.1 MM | ||||
| Q | MAXIMUM SEATPOST INSERTION | Â | Â | Â | Â | Â | Â | 245.0 MM | 265.0 MM | 300.0 MM | 320.0 MM | ||||
| R | CRANK LENGTH | Â | Â | Â | Â | Â | Â | 165.0 MM | 165.0 MM | 165.0 MM | 165.0 MM | ||||
| Color | White |
|---|---|
| Frame Size | S, M, L, XL |
| Stock # | 2022 Scott Patron ERide 910 US |
| Colors | White |
